Tempat asal:
Cina
Nama merek:
Hengyang
Sertifikasi:
ISO9001
Nomor model:
HC-476

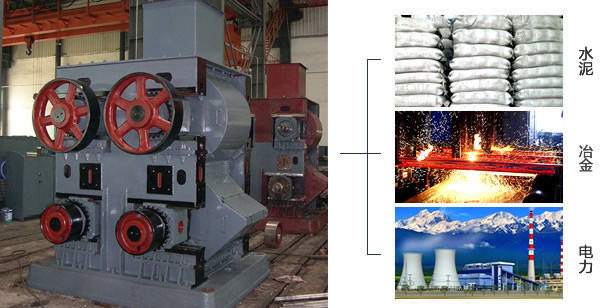

Seri 4PG empat roller crusher terutama digunakan untuk penghancuran tambang medium keras dan batuan dalam semen, kimia, tenaga listrik, metalurgi, bahan bangunan,bahan api dan sektor industri lainnya, seperti penghancuran sekunder dan penghancuran halus dari batu kapur, slag, coke, batubara dan bahan lainnya.

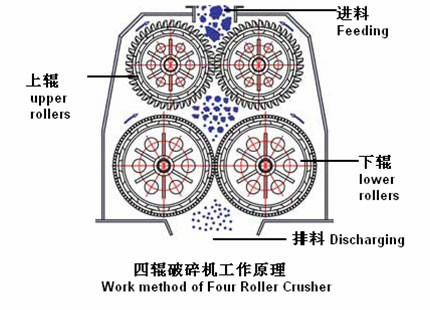

Rol crusher terutama terdiri dari roda roller, bantalan roller, alat penjepit dan pengaturan dan perangkat drive.
| Jenis | Nomor model. |
Dimensi roller (diameter × panjang mm) |
Ukuran pembuangan (mm) |
Ukuran makan maksimal (mm) |
Kapasitas (t/h) |
Motor | Dimensi (mm) |
Berat badan (kg) |
|
|
Kekuatan (kw) |
Tegangan (v) |
||||||||
| Empat penghancur roller halus | 4PG-705 | 750x500 | 0-12 | 85 | 20-60 | 11+24/30 | 380 | 2760x3590x2650 | 19200 |
| 4PG-907 | 900x700 | 0-12 | 100 | 30-70 | 15+24/30 | 9000x4200x3200 | 27200 | ||
| 4PG-T907 | 900x700 | 0-12 | 100 | 30-70 | 30+15/22 | 4200x3200x3200 | 26000 | ||
| 4PG-Y1210 | 1200x1000 | 0-12 | 100 | 40 sampai 80 | 40+55/75 | 9610x5600x4240 | 67000 | ||
| Jenis | Nomor model. |
Ukuran pakan (≤ mm) |
Ukuran pelepasan (≤ mm) |
Kapasitas pengolahan (t/h) |
Motor listrik |
Berat badan (kg) |
Dimensi garis besar (L × W × H mm) |
||
| A | B | ||||||||
| Mesin penghancur rol empat gigi | 070608 | 300 | 8 | 50 | Y250M-6 | Y280S-6 | 10160 | 3700 × 1450 × 1730 | 3700 × 3100 × 1730 |
| N=37kw | N=45kw | ||||||||
| 080709 | 70 | Y250M-6 | Y280S-6 | 13890 | 3760 × 1550 × 1730 | 3760×3200×1900 | |||
| N=37kw | N=45kw | ||||||||
| 090810 | 90 | Y280S-6 | Y280M-6 | 15680 | 3900 × 1760 × 2130 | 3900 × 5500 × 2130 | |||
| N=45kw | N=55kw | ||||||||
| 090910 | 120 | Y280M-6 | Y315S-6 | 19000 | 4176×1938×2140 | 4176 × 3049 × 2140 | |||
| N=55kw | N=75kw | ||||||||
| 100811 | 140 | Y280M-6 | Y315S-6 | 21000 | 4614×1824×2340 | 4614 × 3934 × 2340 | |||
| N=55kw | N=75kw | ||||||||
| 100911 | 170 | Y315S-6 | Y315M-6 | 25320 | 4952×1924×2340 | 4952 × 4194 × 2340 | |||
| N=75kw | N=90kw | ||||||||
| 101111 | 200 | Y315M-6 | Y315L1-6 | 25960 | 5152×2200×2360 | 5152 × 4540 × 2360 | |||
| N=90kw | N=110kw | ||||||||
| 101311 | 250 | Y315L1-6 | Y315L2-6 | 27800 | 5552 × 2400 × 2360 | 5552×4740×2360 | |||
| N=110kw | N=132kw | ||||||||
| 101411 | 300 | Y315L2-6 | Y355M-6 | 31680 | 4900×3226×2421 | 4900 × 4960 × 2421 | |||
| N=132kw | N=160kw | ||||||||
| 101611 | 350 | Y355M-6 | Y355M-6 | 34680 | 4900 × 2621 × 2570 | 4900 × 4660 × 2570 | |||
| N=160kw | N=185kw | ||||||||
| 101812 | 450 | Y355M-6 | Y355L-6 | 36860 | 5150 × 2814 × 2760 | 5150 × 4760 × 2760 | |||
| N=185kw | N=220kw | ||||||||
| 101912 | 500 | Y355L-6 | Y355L-6 | 38200 | 6550 × 3100 × 2760 | 5550 × 5624 × 2760 | |||
| N=220kw | N=250kw | ||||||||
| 102212 | 600 | Y355L-6 | Y4002-6 | 41200 | 5150 × 3400 × 2660 | 5150×4200×2660 | |||
| N=250kw | N=280kw | ||||||||
| 102512 | 700 | Y4002-6 | Y4003-6 | 46780 | 5150 × 4000 × 2760 | 5550 × 6769 × 2560 | |||
| N=280kw | N=315kw | ||||||||
| 102812 | 800 | Y4003-6 | Y4004-6 | 52860 | 5150×2500×2560 | 5150 × 4200 × 2560 | |||
| N=315kw | N=355kw | ||||||||
| 113214 | 1000 | Y4005-6 | Y4501-6 | 55160 | 5650 × 3000 × 3080 | 5650 × 8600 × 3800 | |||
