Name: V-Type Powder Mixer SS Steel 10-1000L Capacity
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC600
Price: 40,300.00 USD
Availability: InStock

Rumah > Produk > Pabrik Pengolahan Sampah >

V-Type Powder Mixer SS Steel 10-1000L Capacity

V-Type powder mixer stainless steel

SS steel powder mixer 10-1000L

industrial powder mixer waste processing

Tempat asal:

Cina

Nama merek:

Hengyang

Sertifikasi:

ISO9001

Nomor model:

HC600

Hubungi Kami

Minta Kutipan

V-Type Powder Mixer SS Steel 10-1000L Capacity

Rincian produk

Bahan:

SS Steel

Aplikasi:

Pencampuran bubuk

Kapasitas:

10-1000L

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

5600-75000

Kemasan rincian

dinegosiasikan

Waktu pengiriman

20-30 hari

Syarat-syarat pembayaran

T/t

Menyediakan kemampuan

270 set/bulan

Produk-produk terkait

Stainless Steel Vibratory Screening Machine for Food Chemical Pharmacy

Dapatkan Harga Terbaik

Stainless Steel Conical Mixer for Powder Granule Mixing 50-600kg/h

Dapatkan Harga Terbaik

V-Type Powder Mixer SS Steel 10-1000L Capacity

Dapatkan Harga Terbaik

Baterai Timah Pemecahan & menghancurkan lini produksi

Dapatkan Harga Terbaik

Hubungi Kami

86-371-56611369

Hubungi Sekarang

Deskripsi Produk

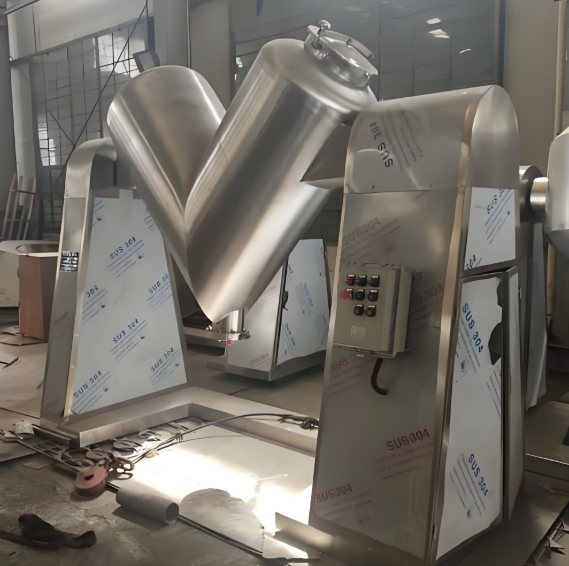

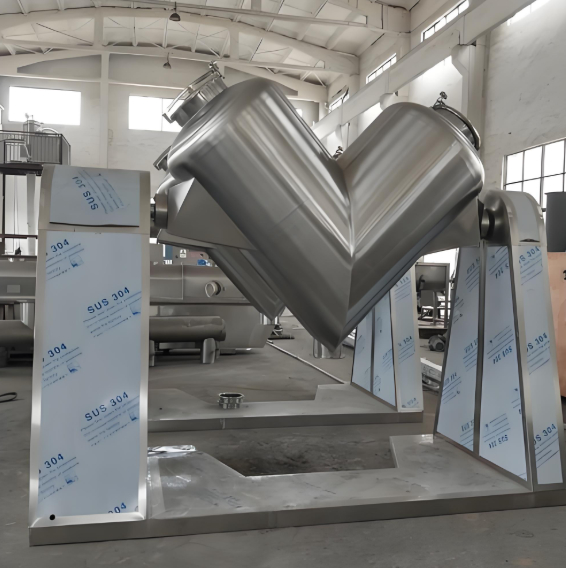

V-Type Mixer

Product Overview

The V-type mixer is a powder mixing equipment formed by welding two cylinders at an angle of 80° to 90° into a V shape. Driven by the central shaft, the cavity rotates, causing materials to undergo convection, diffusion and shear mixing within the cylinder. It provides efficient mixing for powders, granules and other materials with high uniformity, low residue, energy efficiency and easy cleaning.

Key Specifications

Attribute	Value
Materials	SS Steel
Application	Powder Mixing
Capacity	10-1000L

Product Features

High-efficiency mixing structure: 80°-90° V-shaped cavity design creates strong material convection and diffusion during rotation, achieving over 99% uniformity with low residue.
Energy efficient operation: Central shaft support structure reduces centrifugal force impact, enabling low energy consumption and continuous operation.
Broad material compatibility: Effective for powder/granular materials, especially those with large density differences or prone to stratification/caking. Optional flying knife device available for caking materials.
Flexible configurations: Some models support inert gas protection for flammable, explosive or oxidation-sensitive materials.
Easy maintenance: Polished stainless steel cavity with no dead corners meets GMP standards. Simple disassembly for high hygiene requirements in pharmaceutical and food applications.

Technical Specifications

Detailed technical parameters for our V-Type Mixer series:

Model	V-30	V-100	V-200	V-300	V-500	V-1000	V-1500	V-2000	V-3000
Total volume (L)	10-30	100	200	300	500	1000	1500	2000	3000
Effective volume (L)	5-15	50	100	150	250	500	750	1000	1500
Maximum loading weight (kg)	5-20	40	80	120	200	400	600	800	1200
Spindle speed (RPM)	29	1-12	1-12	1-12	1-12	1-12	1-9	1-9	1-9
Motor power (kw)	0.55	0.75	1.1	1.5	2.2	3	4	5.5	7.5
Input power	220V	380V	380V	380V	380V	380V	380V	380V	380V
Total turning height (mm)	1200	1500	1650	1800	2100	2400	2700	3000	3200
Weight (kg)	120	500	600	700	800	1000	1150	1400	2300
Overall dimension (mm) L/W/H	800×400×1200	1800×600×1500	2200×650×1700	2320×720×1800	2450×720×2000	3000×900×2300	3300×1200×2600	3800×1200×2900	4100×1800×3100

Note: Custom sizes available upon request

Applications

The V-Type Mixer is widely used in pharmaceutical, food, chemical and other industries requiring precise powder and granular material mixing. Its hygienic design and efficient operation make it particularly suitable for applications with strict quality control requirements.
