Name: Stainless Steel 3D Mixer 0.25-18.5kW for Pharma Food Chemical
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC405
Price: 40,800.00 USD
Availability: InStock

Rumah > Produk > Mesin OEM >

Stainless Steel 3D Mixer 0.25-18.5kW for Pharma Food Chemical

Stainless Steel 3D Mixer

Pharma Food Chemical Mixer

0.25-18.5kW Industrial Mixer

Tempat asal:

Cina

Nama merek:

Hengyang

Sertifikasi:

ISO9001

Nomor model:

HC405

Hubungi Kami

Minta Kutipan

Stainless Steel 3D Mixer 0.25-18.5kW for Pharma Food Chemical

Rincian produk

Nama:

Pencampuran seragam mixer tiga dimensi, mixer tiga dimensi kimia, mixer tiga dimensi makanan

Aplikasi:

Farmasi, kimia, makanan, dll.

OEM:

Menerima

Bahan:

Baja tahan karat

Kekuatan:

0.25-18.5kw

Kapasitas:

4.5L-1800L

Kondisi:

Baru

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

5600-76000

Kemasan rincian

Bernegosiasi

Waktu pengiriman

15-30 hari

Syarat-syarat pembayaran

T/t

Menyediakan kemampuan

300 set/bulan

Produk-produk terkait

Stainless Steel 3D Mixer 0.25-18.5kW for Pharma Food Chemical

Dapatkan Harga Terbaik

Conveyor yang didorong oleh rantai tarik miring 25 hingga 1000 T/H peralatan pengolahan biji-bijian yang dapat diandalkan

Dapatkan Harga Terbaik

Conveyor rantai tarik miring untuk pabrik pengolahan bahan besar

Dapatkan Harga Terbaik

Conveyor Rantai Pengolahan Bahan Bulk Untuk Berbagai Industri

Dapatkan Harga Terbaik

Hubungi Kami

86-371-56611369

Hubungi Sekarang

Deskripsi Produk

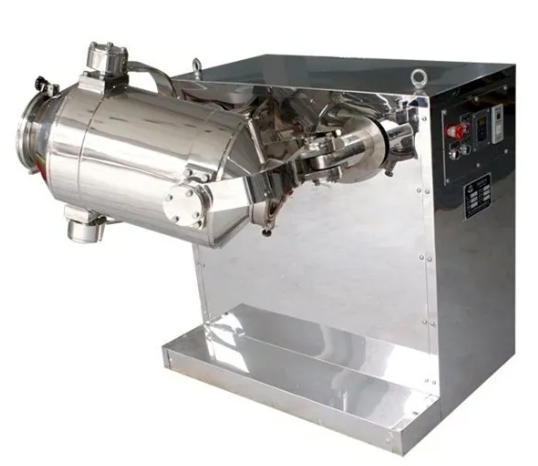

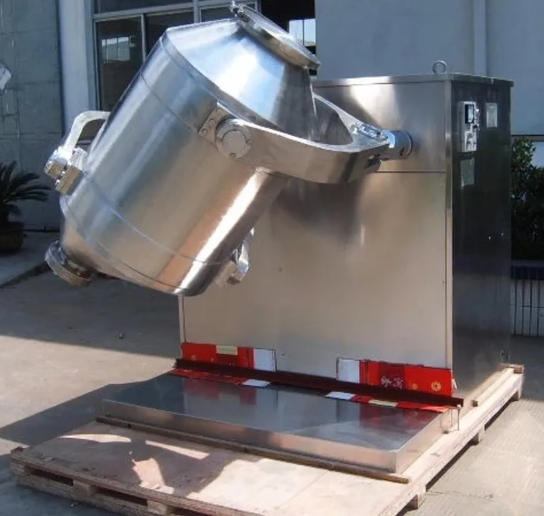

Three-dimensional Mixer / Mixing Machines

Product Specifications

Attribute	Value
Name	Uniform Mixing Three Dimensional Mixer, Chemical Three Dimensional Mixer, Food Three Dimensional Mixer
Application	Pharmaceutical, Chemical, Food, Etc.
OEM	Accept
Materials	Stainless steel
Power	0.25-18.5kw
Capacity	4.5L-1800L
Conditions	New

Product Overview

The 3D mixer utilizes dual-axis or multi-axis drive to enable the container to perform compound motion (tumbling, translation and rotation) in three-dimensional space. This creates irregular spiral trajectories for materials through diffusion, convection and shearing effects, efficiently eliminating mixing dead zones. It achieves uniformity exceeding 99% for powders and granules, with advantages including low energy consumption, minimal wear, and broad adaptability. Ideal for industries requiring high mixing precision such as pharmaceuticals, food processing, and chemical engineering.

Working Principle

The mixer's dual-axis drive creates compound motion (tumbling, translation and rotation), forming three-dimensional spiral material trajectories inside the cylinder. Through diffusion, convection and shearing effects, it achieves uniform mixing while eliminating dead zones in a near-weightless state. The system handles powders and granules effectively, even with significant viscosity or particle size variations. The gentle movement minimizes wear, while the sealed design maintains cleanliness standards. Energy consumption is 30-50% lower than conventional equipment, with adjustable parameters for diverse high-precision mixing applications.

Key Features & Benefits

High mixing accuracy: Three-dimensional motion eliminates dead zones with uniformity exceeding 99%, especially effective for materials with varying particle sizes and densities.
Unique movement mechanism: Compound motion creates irregular spiral material trajectories, preventing stratification in near-weightless conditions.
Broad material compatibility: Processes powders, granules, and sticky materials, meeting stringent cleanliness and uniformity requirements across pharmaceutical, food, and chemical applications.
Low-wear operation: Gentle movement reduces material degradation while sealed construction prevents dust leakage, with 30-50% lower energy consumption than traditional mixers.
Operational flexibility: Adjustable parameters (speed, time) accommodate different materials, with easy maintenance and compliance with GMP cleanliness standards.

Technical Specifications

Model	SYH-5	SYH-15	SYH-50	SYH-100	SYH-200	SYH-400	SYH-600	SYH-800	SYH-1000	SYH-1200	SYH-1500	SYH-2000
Total volume (L)	5	15	50	100	200	400	600	800	1000	1200	1500	2000
Effective volume (L)	4.5	13.5	45	90	180	360	540	720	900	1080	1350	1800
Max loading weight (kg)	1.5-2.7	4-8.1	15-27	30-54	50-108	100-216	150-324	200-432	250-540	366-648	400-810	500-1080
Spindle speed (r/min)	0-20	0-20	0-20	0-20	0-15	0-15	0-13	0-10	0-10	0-9	0-9	0-8
Motor power (kw)	0.25	0.37	1.1	1.5	2.5	4	5.5	7.5	11	11	15	18.5
Dimensions (mm)	600×1000×1000	800×1200×1000	1150×1400×1000	1250×1800×1550	1450×2000×1550	1650×2200×1550	1850×2500×1750	2100×2650×2000	2150×2800×2100	2000×3000×2260	2300×3200×2500	2500×3500×2800
Weight (kg)	100	200	300	800	1200	1200	1500	1700	1800	2000	2400	3000

Custom sizes available upon request
