Name: Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Seri XL-2XL
Price: 33,850.00 USD
Availability: InStock

Rumah > Produk > Micron Powder Grinding Machine >

Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing

High Capacity Double Spiral Sand Washer

Double Spiral Sand Washer

Tempat asal:

Cina

Nama merek:

hengyang

Sertifikasi:

ISO9001

Nomor model:

Seri XL-2XL

Hubungi Kami

Minta Kutipan

Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing

Rincian produk

Voltase:

220V/380V,220V,110/220 v,380V, Disesuaikan

Jaminan:

12 Bulan

Fungsi:

Pencucian Pasir dan Kerikil

jenis:

Pencucian

Warna:

Sesuaikan

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

12000-55700USD/set

Kemasan rincian

Dinegosiasikan

Waktu pengiriman

15-20 hari

Syarat-syarat pembayaran

T/T

Menyediakan kemampuan

300 set/bulan

Produk-produk terkait

Nonmetal Rotary TROMMEL Screen for material separation processes

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

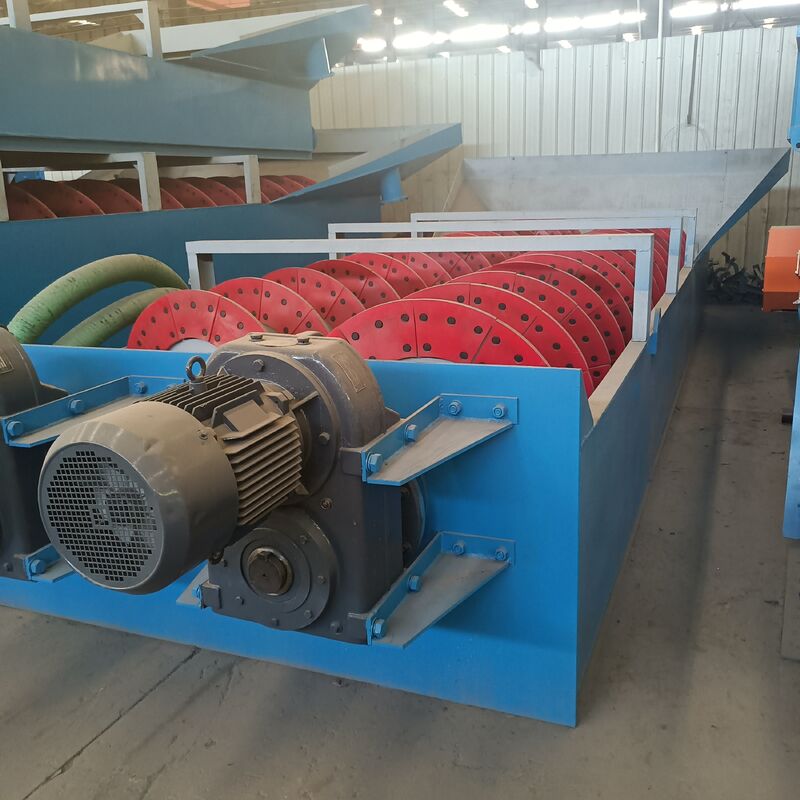

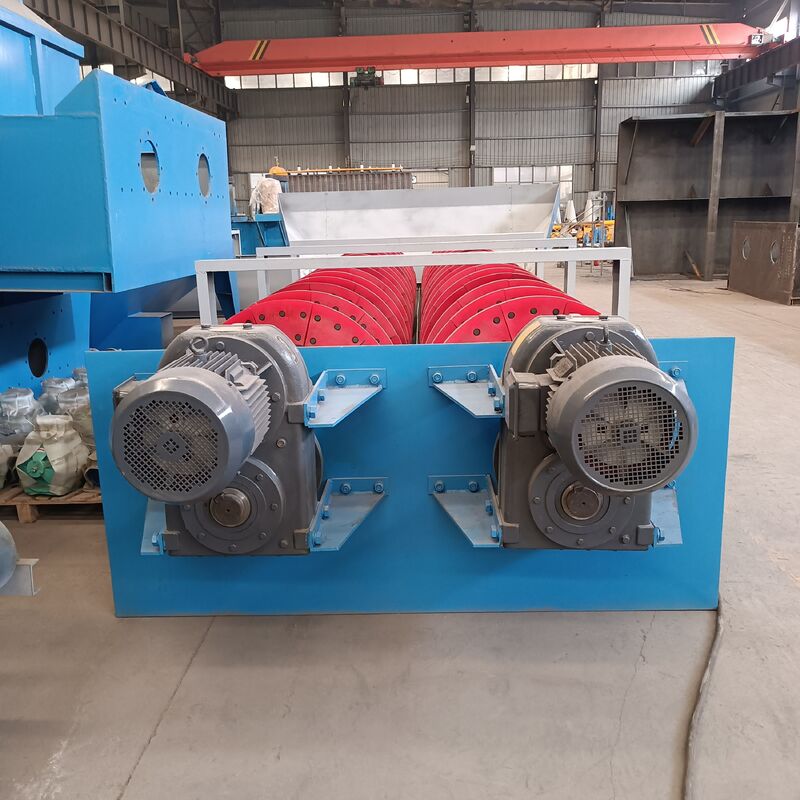

Double Spiral Sand & Gravel Washer

The spiral sand washer efficiently cleans sand and gravel through its spiral mechanism. The equipment stirs the material, mixing soil and water which is then discharged through designated outlets. Under the spiral's action, sand and gravel are gradually screened and discharged from the top outlet, achieving thorough cleaning.

Main Features

Double shaft design provides wider processing width compared to single-spiral models
Higher output capacity than single-spiral washers
Maintains excellent cleaning quality equivalent to single-spiral models
Strong cleaning capability with effective results
Ideal for processing sand and gravel with significant impurity content
Commonly deployed in large-scale sand production operations

Contact: +8615617816797

Technical Parameters

Model	XL508	XL610	XL762	XL915	2XL915	XL1115	2XL1115
Screw Diameter (mm)	508	610	762	915	915	1115	1115
Length of Tub (mm)	6705	7225	7620	7585	7585	9782	9782
Max Feed Size (mm)	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10
Capacity (t/h)	20	40-50	50-75	100	200	175	350
Speed of Screw (r/min)	38	32	26	21	21	17	17
Motor Power (kw)	5.5	7.5	11	11	2×11	15	2×15
Water Consumption (t/h)	6-60	6-63	9-63	10-80	20-160	20-150	40-300
Overall Dimensions (L×W×H mm)	8000×2343×1430	8000×2050×1400	8545×2650×3862	8500×2810×3600	8420×3765×3960	10970×3945×4720	10970×5250×4720
Weight (t)	2.67	3.80	5.23	6.27	11.11	10.18	17.94
