Name: Metal Rotary Drum Screen
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: seri TTS
Price: 33,850.00 USD
Availability: InStock

Rumah > Produk > Stone & Sand Washing Line >

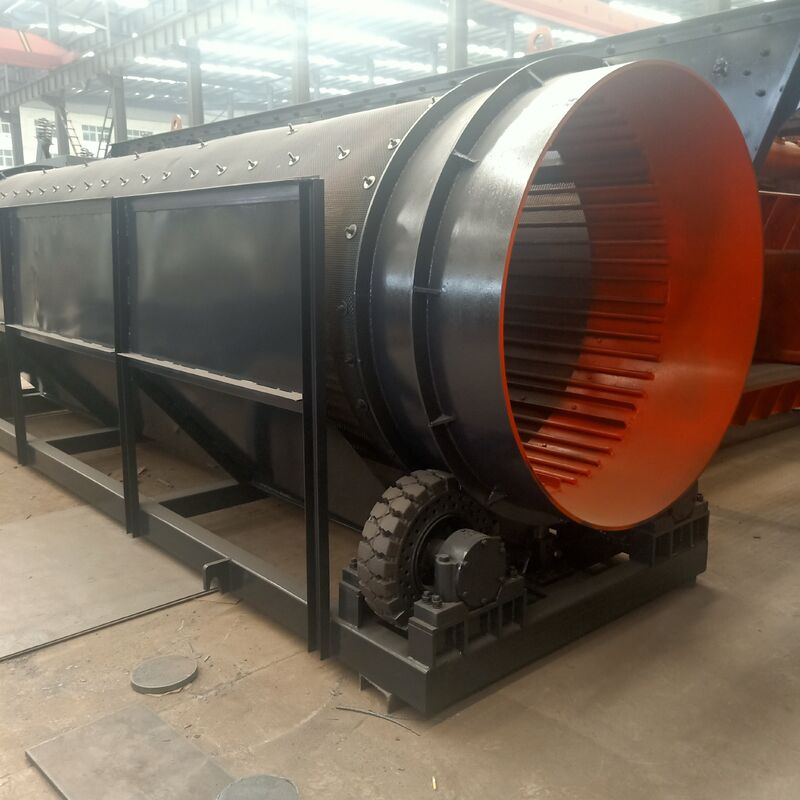

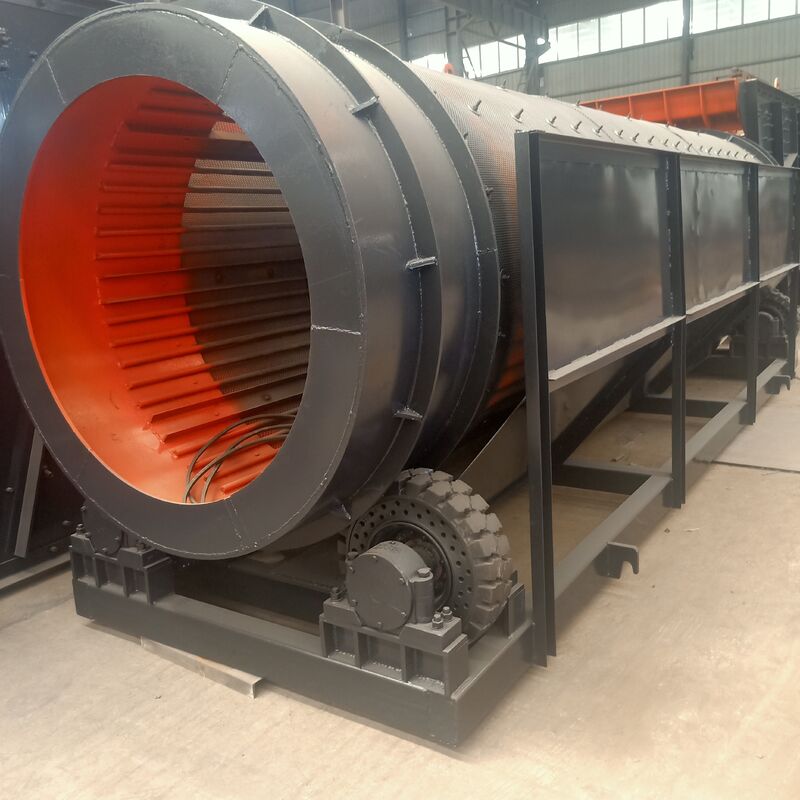

Metal Rotary Drum Screen

Rotary Drum Screen

Tempat asal:

Cina

Nama merek:

hengyang

Sertifikasi:

ISO9001

Nomor model:

seri TTS

Hubungi Kami

Minta Kutipan

Rincian produk

Warna:

Sesuaikan

Aplikasi:

Mencuci dan Memisahkan

Bahan:

baja

Kapasitas:

50-400t/jam

OEM:

menerima

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

12000-55700USD/set

Kemasan rincian

Dinegosiasikan

Waktu pengiriman

15-20 hari

Syarat-syarat pembayaran

T/T

Menyediakan kemampuan

300 set/bulan

Produk-produk terkait

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Dapatkan Harga Terbaik

Customize PU Spiral Sand Washing Machinery

Dapatkan Harga Terbaik

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

Dapatkan Harga Terbaik

Insutrial Use Rotary Screen Capacity 1-250t/h

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

Metal Rotary Drum Screen widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Principle

• Mobile Gold Washing Machines are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
• Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
• After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.

Metal Rotary Drum Screen 0

Technical Details

Model	Length range (m)	Screen segments	Mesh range (mm)	Power (kw)	Degree of tilt	Max Size (mm)	Drum speed (r/min)	Handling capacity (m3/h)	Reference weight (kg)
YTS600	2~4	1~3	5~35	2.2~3	7°	35	20	10	1.6
YTS800	2~4	1~3	5~40	2.2~5.5	7°	45	18	14	2.4
YTS1000	2~6	1~4	5~45	3~7.5	7°	60	16	16	4.2
YTS1200	2~8	1~4	5~50	4~11	7°	70	15	20	5.8
YTS1500	2~8	1~4	5~55	4~15	7°	80	12	32	7.2
YTS2000	2~9	1~4	5~60	5.5~18.5	7°	90	8	45	11

Tag：

Metal Rotary Drum Screen
