Name: Belt Conveyor
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Konveyor tipe B
Price: 8,650.00 USD
Availability: InStock

Rumah > Produk > Mesin Pakan & Pengantar >

Belt Conveyor

industrial belt conveyor machine

heavy duty belt conveyor

material handling belt conveyor

Tempat asal:

Cina

Nama merek:

hengyang

Sertifikasi:

ISO9001

Nomor model:

Konveyor tipe B

Hubungi Kami

Minta Kutipan

Rincian produk

Kapasitas:

50-700t/jam

Kondisi:

Baru

OEM:

menerima

Aplikasi:

Mengangkut material

Jaminan:

12 Bulan

Voltase:

Terserah Pembeli

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

5000-12300USD/set

Kemasan rincian

Dinegosiasikan

Waktu pengiriman

15-20 hari

Syarat-syarat pembayaran

T/T

Menyediakan kemampuan

300 set/bulan

Produk-produk terkait

Chain Conveying Feeder

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

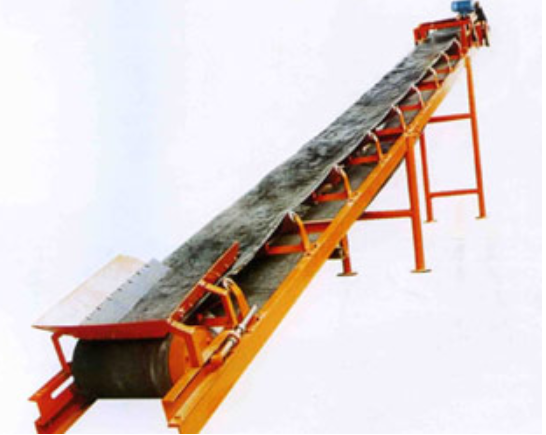

Belt Conveyor

Belt Conveyor is used to convey the loose and unit materials. All can be conveyed single or more machines ,according to the demands .As well as the conveyor system composition of the other conveyor equipments .That can meet all kinds of task .It is used in the scope that environment -45℃ to 46℃.the materials temperature less than 50℃.And it is widely used in mining ,metallurgy ,coal etc industries .

Working Principle Of Belt Conveyor:

When the Belt Conveyor is on operation ,through the friction between belt and transmission drum ,the belt then can move .From the loading point ,the materials is loading on the belt and then unloading from the unloading point.This can form the continuous logistics .Generally ,the materials are loading on the belt and then unloading from the transmission drum, as well as the special unloading equipment .

Characteristics Of Belt Conveyor:

Large delivery value ,simple structure ,convenient maintenance ,low cost and strong generality.

Technical Details:

Belt Width (mm)	Length(m) Power(kw)			Speed (m/s)	Production (t/h)
500	≤12 3	12-20 4-5.5	20-30 5.5-7.5	1.3-1.6	78-191
650	≤12 4	12-20 5.5	20-30 7.5-11	1.3-1.6	131-323
800	≤6 4	6-15 5.5	15-30 7.5-15	1.3-1.6	278-546
1000	≤105 5	10-207 5-11	20-40 11-22	1.3-2.0	435-853
1200	≤107 5	10-20 11	20-40 15-30	1.3-2.0	655-1284
